一、简介

在过去相当长一段时间内，稳定的科学上网方法为使用国外部署shadowsocks+本地部署clash等技术实现本地socks代理，适用于浏览器等终端挂载使用。而对于操作系统，则可以通过设置系统全局代理或者设置终端http_proxy https_proxy socks_proxy all_proxy等参数也可以实现terminal终端等的使用，但是该方法受限于应用程序的支持程度不同导致现无法使用的情况。
无疑使我们想到了使用VPN的方式。其实早先，可以使用VPN协议直达国外网络，但是GFW对于VPN协议的识别和拦截程度相当严格，最终无法使用。近期，通过对Xray的研究，发现其对于iptables-tproxy的支持，可以实现透明代理。在局域网，可以通过设置网关为配置了iptables-tproxy的xray服务器。通过测试，也实现了从公网访问wg服务器，且wg服务器通过设置默认网关为Xray服务器，策略路由控制其udp 51820流量走默认网关，实现VPN科学上网。

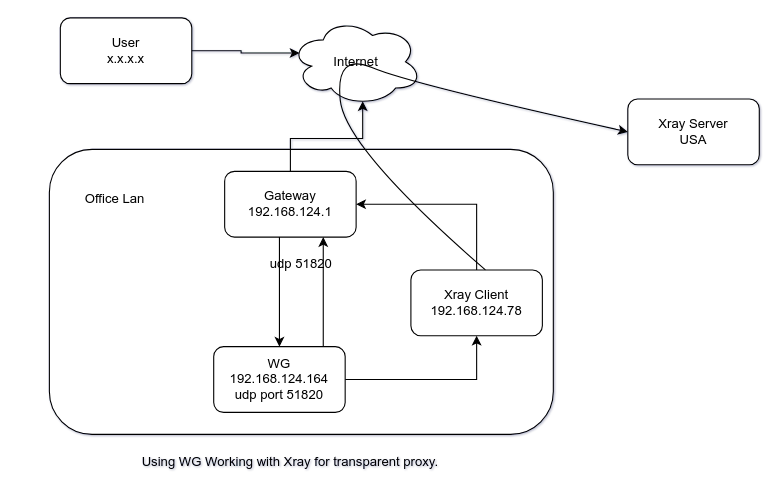

拓扑图如下

二、部署xray client systemd服务

2.1 下载文件

wget http://vip.123pan.cn/1815238395/download/xray/Xray-core%20v1.8.8/Xray-linux-64.zip
cp xray /usr/local/bin/
mkdir -p /usr/local/share/xray
wget --no-check-certificate -O /usr/local/share/xray/ http://vip.123pan.cn/1815238395/download/xray/rules/20240228/geoip.dat
wget --no-check-certificate -O /usr/local/share/xray/ http://vip.123pan.cn/1815238395/download/xray/rules/20240228/geosite.dat

2.2 配置服务

mkdir -p /etc/systemd/system/xray.service.d
cat <<'EOF'>10-donot_touch_single_conf.conf
# In case you have a good reason to do so, duplicate this file in the same directory and make your customizes there.
# Or all changes you made will be lost!  # Refer: https://www.freedesktop.org/software/systemd/man/systemd.unit.html
[Service]
ExecStart=
ExecStart=/usr/local/bin/xray run -config /usr/local/etc/xray/config.json

mkdir -p /etc/systemd/system/xray@.service.d/
cat <<'EOF'>10-donot_touch_single_conf.conf
# In case you have a good reason to do so, duplicate this file in the same directory and make your customizes there.
# Or all changes you made will be lost!  # Refer: https://www.freedesktop.org/software/systemd/man/systemd.unit.html
[Service]
ExecStart=
ExecStart=/usr/local/bin/xray run -config /usr/local/etc/xray/%i.json

cat <<'EOF'>/etc/systemd/system/xray.service
[Unit]
Description=Xray Service
Documentation=https://github.com/xtls
After=network.target nss-lookup.target
[Service]
User=nobody
CapabilityBoundingSet=CAP_NET_ADMIN CAP_NET_BIND_SERVICE
AmbientCapabilities=CAP_NET_ADMIN CAP_NET_BIND_SERVICE
NoNewPrivileges=true
ExecStart=/usr/local/bin/xray run -config /usr/local/etc/xray/config.json
Restart=on-failure
RestartPreventExitStatus=23
LimitNPROC=10000
LimitNOFILE=1000000
[Install]
WantedBy=multi-user.target
EOF

cat <<'EOF'>/etc/systemd/system/xray@.service
[Unit]
Description=Xray Service
Documentation=https://github.com/xtls
After=network.target nss-lookup.target
[Service]
User=nobody
CapabilityBoundingSet=CAP_NET_ADMIN CAP_NET_BIND_SERVICE
AmbientCapabilities=CAP_NET_ADMIN CAP_NET_BIND_SERVICE
NoNewPrivileges=true
ExecStart=/usr/local/bin/xray run -config /usr/local/etc/xray/%i.json
Restart=on-failure
RestartPreventExitStatus=23
LimitNPROC=10000
LimitNOFILE=1000000
[Install]
WantedBy=multi-user.target

chmod 644 /etc/systemd/system/xray.service /etc/systemd/system/xray@.service

2.3 配置xray client.json

cat <<'EOF'>/usr/local/etc/xray/config.json
{
  "log": {
    "loglevel": "warning"
  },
  "inbounds": [
    {
      "tag": "all-in",
      "port": 12345,
      "protocol": "dokodemo-door",
      "settings": {
        "network": "tcp,udp",
        "followRedirect": true
      },
      "sniffing": {
        "enabled": true,
        "destOverride": ["http", "tls", "quic"]
      },
      "streamSettings": {
        "sockopt": {
          "tproxy": "tproxy"
        }
      }
    },
    {
      "port": 10808,
      "protocol": "socks",
      "sniffing": {
        "enabled": true,
        "destOverride": ["http", "tls", "quic"]
      },
      "settings": {
        "auth": "noauth",
        "udp": true
      }
    }
  ],
  "outbounds": [
    {
      //此为默认outbound，路由(routing)模块若未匹配到任何规则，则默认走此 proxy 出口，如果你希望直连国内优先请将下面 direct 出口放到 outbound 第一，看不懂可忽略
      "tag": "proxy",
      "protocol": "vless",
      "settings": {
        "vnext": [
          {
            "address": "1111", //改为你自己的域名，直接填写ipv4或ipv6地址也可以
            "port": 443,
            "users": [
              {
                "id": "1111", //填写uuid，可通过在终端中输入 xray uuid 生成；此处也支持任意字符串（https://xtls.github.io/config/inbounds/vless.html#clientobject）
                "encryption": "none",
                "flow": "xtls-rprx-vision"
              }
            ]
          }
        ]
      },
      "streamSettings": {
        "sockopt": {
          "mark": 255
        },
        "network": "tcp",
        "security": "tls", //注意使用 xtls-rprx-vision 流控此处需为 tls
        "tlsSettings": {
          //注意使用 xtls-rprx-vision 流控此处需为 tlsSettings
          "allowInsecure": false,
          "serverName": "111", //改为你自己的域名
          "fingerprint": "chrome" //此设置建议先看下Release, https://github.com/XTLS/Xray-core/releases/tag/v1.7.3
        }
      }
    },
    {
      "tag": "direct",
      "protocol": "freedom",
      "settings": {
        "domainStrategy": "UseIP"
      },
      "streamSettings": {
        "sockopt": {
          "mark": 255
        }
      }
    },
    {
      "tag": "block",
      "protocol": "blackhole",
      "settings": {
        "response": {
          "type": "http"
        }
      }
    },
    {
      "tag": "dns-out",
      "protocol": "dns",
      "streamSettings": {
        "sockopt": {
          "mark": 255
        }
      }
    }
  ],
  "dns": {
    "hosts": {
      "domain:googleapis.cn": "googleapis.com",
      "dns.google": "8.8.8.8",
      "111": "111" //如果 outbound 的 proxy 里 address 填的域名：希望代理走ipv4，这里 VPS IP 填VPS的ipv4, 希望代理走ipv6，这里VPS IP 填VPS的ipv6；outbound 的 proxy 里 address 填的 IP，这行不用写。
    },
    "servers": [
      "https://1.1.1.1/dns-query",
      {
        "address": "119.29.29.29",
        "domains": ["geosite:cn"],
        "expectIPs": ["geoip:cn"]
      },
      "https://dns.google/dns-query",
      "223.5.5.5",
      "localhost"
    ]
  },
  "routing": {
    "domainMatcher": "mph",
    "domainStrategy": "IPIfNonMatch",
    "rules": [
      {
        "type": "field",
        "domain": ["geosite:category-ads-all"],
        "outboundTag": "block"
      },
      {
        "type": "field",
        "inboundTag": ["all-in"],
        "port": 123,
        "network": "udp",
        "outboundTag": "direct"
      },
      {
        "type": "field",
        "inboundTag": ["all-in"],
        "port": 53,
        "network": "udp",
        "outboundTag": "dns-out"
      },
      {
        "type": "field",
        "ip": ["119.29.29.29", "223.5.5.5"],
        "outboundTag": "direct"
      },
      {
        "type": "field",
        "protocol": ["bittorrent"],
        "outboundTag": "direct"
      },
      {
        "type": "field",
        "ip": ["geoip:private", "geoip:cn"], //此处可加入 VPS IP 避免 ssh 时被代理
        "outboundTag": "direct"
      },
      {
        "type": "field",
        "domain": ["geosite:cn"],
        "outboundTag": "direct"
      },
      {
        "type": "field",
        "ip": ["1.1.1.1", "8.8.8.8"],
        "outboundTag": "proxy"
      },
      {
        "type": "field",
        "domain": [
          "geosite:geolocation-!cn",
          "domain:googleapis.cn",
          "dns.google"
        ],
        "outboundTag": "proxy"
      }
    ]
  }
}
EOF

2.4 启动服务

systemctl enable xray
systemctl restart xray

2.5 设置支持流量转发到xray

#!/bin/bash

# 路由
ip rule delete fwmark 1 table 100
ip rule add fwmark 1 table 100

ip route flush table 100
ip route add local default dev lo table 100
ip route list table 100

# 代理局域网设备 v4
iptables -t mangle -N XRAY
iptables -t mangle -F XRAY
iptables -t mangle -A XRAY -p udp --dport 51820 -j RETURN
iptables -t mangle -A XRAY -p udp --sport 51820 -j RETURN
iptables -t mangle -A XRAY -d 127.0.0.1/32 -j RETURN
iptables -t mangle -A XRAY -d 224.0.0.0/4 -j RETURN
iptables -t mangle -A XRAY -d 255.255.255.255/32 -j RETURN
iptables -t mangle -A XRAY -d 192.168.0.0/16 -p tcp -j RETURN
iptables -t mangle -A XRAY -d 192.168.0.0/16 -p udp ! --dport 53 -j RETURN
iptables -t mangle -A XRAY -j RETURN -m mark --mark 0xff
iptables -t mangle -A XRAY -p udp -j TPROXY --on-ip 127.0.0.1 --on-port 12345 --tproxy-mark 1
iptables -t mangle -A XRAY -p tcp -j TPROXY --on-ip 127.0.0.1 --on-port 12345 --tproxy-mark 1
iptables -t mangle -A PREROUTING -j XRAY

# 代理网关本机 v4
iptables -t mangle -N XRAY_MASK
iptables -t mangle -F XRAY_MASK
iptables -t mangle -A XRAY_MASK -p udp --dport 51820 -j RETURN
iptables -t mangle -A XRAY_MASK -p udp --sport 51820 -j RETURN
iptables -t mangle -A XRAY_MASK -d 224.0.0.0/4 -j RETURN
iptables -t mangle -A XRAY_MASK -d 255.255.255.255/32 -j RETURN
iptables -t mangle -A XRAY_MASK -d 192.168.0.0/16 -p tcp -j RETURN
iptables -t mangle -A XRAY_MASK -d 192.168.0.0/16 -p udp ! --dport 53 -j RETURN
iptables -t mangle -A XRAY_MASK -j RETURN -m mark --mark 0xff
iptables -t mangle -A XRAY_MASK -p udp -j MARK --set-mark 1
iptables -t mangle -A XRAY_MASK -p tcp -j MARK --set-mark 1
iptables -t mangle -A OUTPUT -j XRAY_MASK

# 新建 DIVERT 规则，避免已有连接的包二次通过 TPROXY，理论上有一定的性能提升 v4
iptables -t mangle -N DIVERT
iptables -t mangle -F DIVERT
iptables -t mangle -A DIVERT -j MARK --set-mark 1
iptables -t mangle -A DIVERT -j ACCEPT
iptables -t mangle -I PREROUTING -p tcp -m socket -j DIVERT

三、支持WG

#!/bin/bash
ip rule add fwmark 0x1 table 200
ip route add default via 192.168.124.1 dev ens18 table 200
echo 1 > /proc/sys/net/ipv4/ip_forward

iptables -t mangle -F
iptables -t mangle -A PREROUTING -p udp --sport 51820 -j MARK --set-mark 1
iptables -t mangle -A OUTPUT -p udp --sport 51820 -j MARK --set-mark 1

四、参考
